A pole replacement can solve a height problem and create a loading problem in the adjoining span. That is why we review the overhead distribution line as a connected physical system before settling the work at an individual pole. The replacement decision needs more than a taller symbol on a plan.
This guide covers the physical model used to design overhead distribution work, including make-ready. We follow the conductors from surveyed geometry through engineering checks to the instructions issued for construction. Electrical feeder studies have a different purpose; here, the question is whether the proposed arrangement can be supported and built with the required clearances.
What distribution line modeling represents

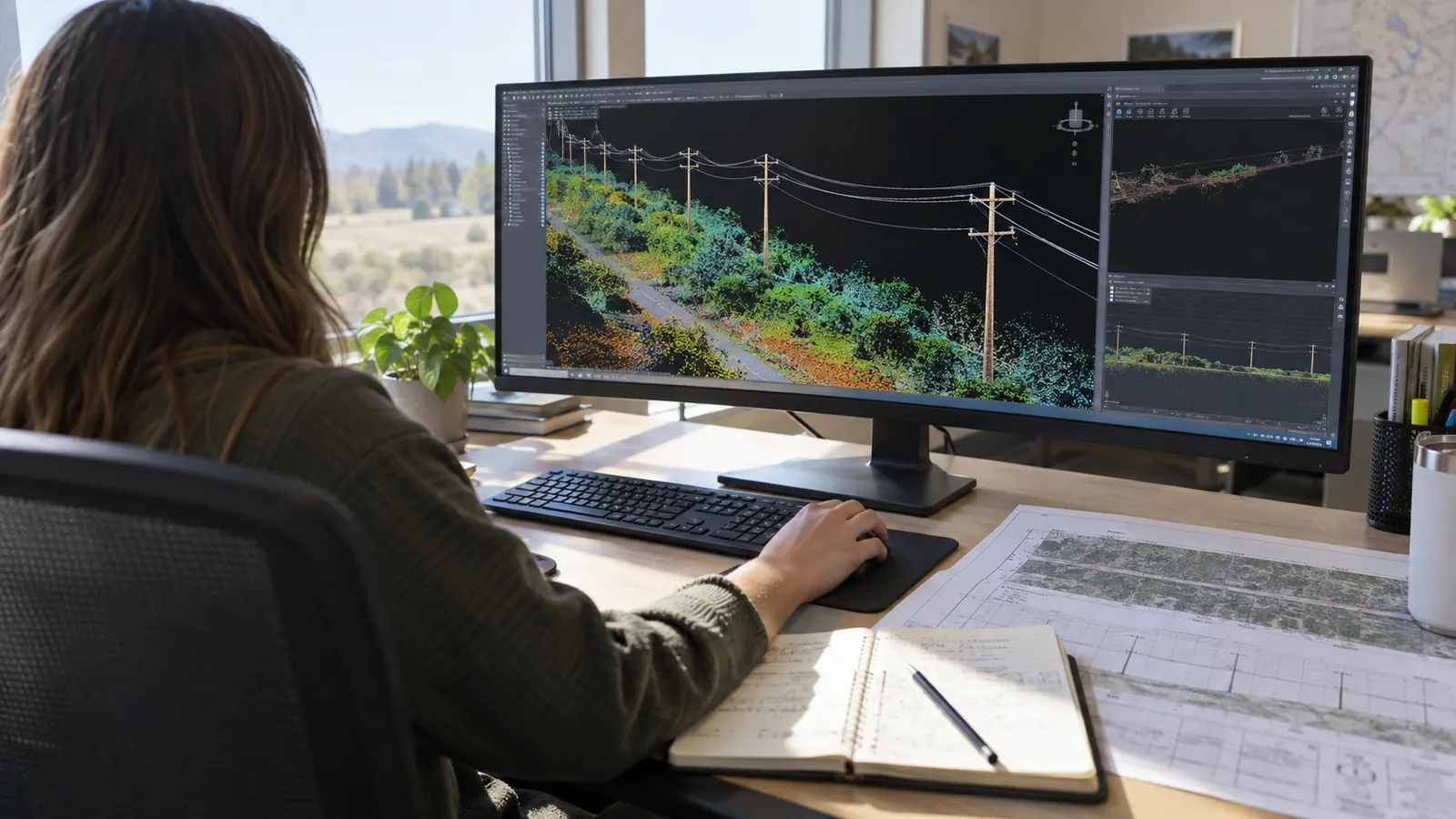

Distribution line modeling represents overhead distribution conductors and their supporting structures in a connected engineering model. A 3D representation places wire attachment points against surveyed terrain. Calculations evaluate conductor sag and tension under specified conditions; the model also supports clearance checks and structure loading calculations. The results guide make-ready decisions and construction drawings.
The model needs a stated purpose. A new line extension begins with proposed geometry, while a make-ready model begins with existing attachments that may have incomplete records. We identify the decision the owner needs before choosing how much field detail to collect. A structure replacement and a conductor change can require different investigations even when they concern the same pole.
Establish the existing condition
Pole identifiers must connect the survey to the utility's asset records. We retain the measured attachment elevations and the coordinate reference used for ground elevations so a reviewer can reconstruct the vertical geometry. A height above local ground cannot be exchanged silently with an elevation above a datum. Both values may be useful. They answer different questions.
The survey also needs to reach beyond the pole. A road crest or rising driveway can control clearance somewhere other than the conductor's lowest point, and an adjoining span can impose a force that a close photograph does not explain. We scope the field work around those relationships. Missing terrain between structures remains an unresolved input even when the pole measurements look complete.
Separate measurement from assumption
An existing conductor's identity deserves its own check. Diameter estimated from an image may narrow the possibilities, but the mechanical calculation needs a supported material and construction designation. We compare utility records with available field evidence and mark unresolved differences because substituting a familiar catalog entry merely because it draws correctly can change the calculated tension without producing an obvious visual warning.
We also distinguish captured geometry from predicted behavior. Owner-supplied point-cloud data can describe the wire position at the time of capture; it does not establish the wire's final sag at another temperature. Keep the capture conditions with the model. Record the uncertainty too. Where the evidence cannot support the proposed clearance margin, we request the missing measurement before issuing the affected detail.
Distribution line modeling checks and their inputs
Every calculated result should identify the condition that produced it. We keep the existing arrangement separate from the proposed arrangement and preserve their input differences, rather than overwriting the baseline when an attachment moves. That makes an owner's review practical: the reviewer can trace why a clearance improved and why the load at a neighboring structure changed.
Software categories perform different parts of this work. Survey-processing software organizes measured geometry; sag-tension analysis software calculates conductor behavior. Structure-analysis software evaluates the supports, and CAD software produces the drawing set. We check the exchange between them explicitly because a successful file import can still carry the wrong units or attach a load to the wrong elevation.
Code selection comes before a pass label. IEEE's National Electrical Safety Code, 2023 Edition, took effect on February 1, 2023, according to IEEE Standards Association. We confirm the edition adopted for the project and review applicable corrections or fast-track revisions with the utility's requirements. The latest published edition and a jurisdiction's adopted requirements can differ; the design basis must state what governs this particular distribution project.
The table separates the physical checks so the owner can see which evidence supports each decision. We carry these distinctions through the calculation report, even when one application handles several checks, because a single green summary screen gives too little explanation for a disputed input or an alternate pole arrangement.
| Model component | Required input | Engineering check | Drawing consequence |
|---|---|---|---|
| Conductors | Verified wire designation and attachment geometry | Mechanical properties match the modeled wire | Conductor schedule and connection detail |
| Sag and tension | Span geometry and approved condition cases | Wire shape and force at each case | Stringing information and attachment elevations |
| Clearances | Terrain and crossing classification | Required separation under the applicable condition | Crossing profile or revised arrangement |
| Structure loading | Pole condition and applied loads | Capacity of the support and guy system | Pole selection and guying details |
Model conductors, sag and tension together
Conductor properties affect the whole span
The wire designation connects the geometric line to physical properties. Its weight affects vertical load, while diameter affects wind exposure. We verify the strength and stress-strain data used by the calculation against the selected conductor, including the treatment of permanent elongation. A change in wire type deserves a recalculation even if the proposed attachment points stay where they are.
The neutral requires deliberate treatment too. Its geometry and mechanical properties can differ from those of the phase conductors, so matching its sag visually to another wire may conceal a separation problem. We model the conductors that affect the decision individually. Existing communications attachments also enter the physical assessment where their weight or position affects a shared structure.
Sag and tension describe different consequences
USDA Rural Utilities Service Bulletin 1724E-152, The Mechanics of Overhead Distribution Line Conductors, approved July 30, 2003, explains conductor sag-tension calculations and ruling spans. Its mechanical relationships remain useful background, but its historical NESC references require checking against the project's governing code. We use the bulletin as a mechanics reference, not as a substitute for current clearance requirements.
Sag responds to span length and conductor condition. Under the bulletin's simplified parabolic relationship, increasing span length while holding weight and horizontal tension fixed increases sag with the square of span length. Tension changes must also enter design comparisons. We therefore rerun the relevant cases when a pole relocation lengthens a span instead of scaling a drawing's existing sag curve.
Tension also loads the support. Pulling a conductor tighter may improve vertical clearance in a particular condition while increasing demands on the pole and guy system. We evaluate that tradeoff before proposing a stringing change because the selected arrangement must work across its required conditions, including the condition used for installation, rather than looking acceptable at the survey temperature alone.
Preserve the span relationships
Ruling-span treatment depends on the connected tension section and its support assumptions. A dead-end changes that relationship. We retain the individual span geometry so a crossing can be checked at its actual location, even where a ruling span represents the section's mechanical behavior. Long or uneven spans warrant particular attention to the calculation method's limits and the accuracy of the terrain profile.
Our preference for a connected model has a cost: an incorrect input can propagate through several outputs and make them appear internally consistent. We counter that weakness with an independent check of the controlling span against field evidence because agreement among exported reports proves little when every report inherited the same unsupported attachment height.
Check clearances and structure loading separately
Clearances need the applicable condition
The NESC clearance assessment starts with the crossing or nearby object being evaluated. A road crossing and a building approach do not share a universal required distance, and voltage classification affects which provisions apply. We record the applicable requirement beside the calculated clearance and identify the conductor condition in the report so the owner can review the comparison without rebuilding the calculation.
A survey snapshot cannot show every governing position. We examine the required sag and displaced-wire conditions for the specific clearance, retaining the location where the minimum occurs. The terrain may rise toward a support while the conductor continues downward toward its low point. This is why we review the profile through the crossing instead of reporting only a midspan height.
Make-ready adds another moving part: other attachments. We compare the proposed separation at the pole with the separation through the span where the applicable rules require it. The discussion of aerial fiber clearance design requirements develops that shared-use issue. Raising an attachment at its support does not establish how two different cables will separate between poles.
Loading follows the forces into the support
Structure loading evaluates what the selected pole and its supporting components can carry. We apply the required loading cases with the appropriate strength treatment and include the modeled conductor forces at their actual attachment positions. Line angle matters. A layout that appears straight on a simplified route map can impose a transverse demand when the surveyed alignment turns at the pole.
Guying must be physically achievable. An analysis that assumes an anchor where access or underground congestion prevents installation has not resolved the design. We check the proposed lead and anchor location against the site constraints before relying on that support in the accepted model. Pole condition also matters; a new-pole capacity assumption cannot settle the acceptability of an existing deteriorated structure.
Preserve the failed case when evaluating an alternate. The owner needs to see which conductor condition or structural demand required the change, even after the revised arrangement passes.
Decide between rearrangement and replacement
A clearance shortfall may be resolved by an approved attachment rearrangement, but available space and structural capacity limit that option. We compare the alternate against the baseline and rerun the affected neighboring spans; if replacement is necessary, pole height and strength class must be selected together with the proposed attachments. A taller pole by itself does not establish adequate capacity.
For cooperative owners, the model also needs to fit the utility's accepted construction assemblies. Our article on distribution line extension design explains the wider route-to-package decisions. Within the model, we retain the selected assembly reference so a substituted arm or attachment configuration does not silently change the engineering assumptions after review.
Turn the accepted model into construction drawings
Transfer decisions into buildable instructions
Construction drawings should make the accepted arrangement legible without requiring the crew to interpret the analysis application. We show where existing facilities remain and identify the work that changes them. Pole identifiers must match the report. The proposed attachment elevations and assembly references belong on the corresponding detail, with units that remain clear on a printed sheet.
Stringing information needs the same discipline. We carry the approved conductor designation and installation basis into the issued package, with the relevant sag-tension information where the utility requires it. A generic note to match existing sag leaves a critical decision unresolved when the project changes the span or conductor. The drawing should communicate the designed condition that the installation will be checked against.
Work sequencing deserves separate attention when the finished arrangement depends on earlier transfers. We identify the dependency and coordinate responsibility with the pole owner; the final-state calculation alone cannot describe every temporary condition. Our electric utility engineering support connects that review to the distribution package so a make-ready detail does not reach construction with an unresolved prerequisite.
Control the last revision
Model changes must reach every affected sheet before issue. We compare the final pole schedule with the analysis output and trace changed attachment elevations into the crossing profiles. Describe the physical change in each revision. Where a later field discovery alters the accepted geometry, we return the affected design to engineering review before treating the redline as an approved substitution.
Native model files, when required by the agreement, need their referenced libraries and version information so the recipient can reopen them meaningfully. We establish those deliverables during scoping so the owner receives enough calculation information to review the result and maintain the asset record afterward. An image of the result may explain the proposal, but it cannot reproduce the calculation.
Ask the receiving utility which model format it can review before production starts. Confirm the exchange with a representative structure so a format mismatch is discovered before the full drawing package is assembled.
Choose the modeling scope before issuing work
Cooperative engineering managers: define the accepted condition cases and construction assemblies before assigning the route. Require exceptions to remain visible in the review package. That gives your standards reviewer a direct way to resolve an unusual crossing without reopening decisions that already match the utility's requirements.
Joint-use project managers: resolve uncertain existing attachments before committing to a rearrangement schedule. Obtain the pole owner's acceptance of the proposed work and identify transfer dependencies. A calculated clearance improvement cannot set another attacher's work date, so carry that dependency into the construction plan as a separate coordination item.
Distribution construction managers: require the issued sheets to identify the accepted geometry and the limits of permitted field changes. Keep the calculation revision connected to the drawing revision. Draftech's overhead distribution design service addresses that handoff; the companion guide to overhead distribution line construction covers the work that follows design release.
