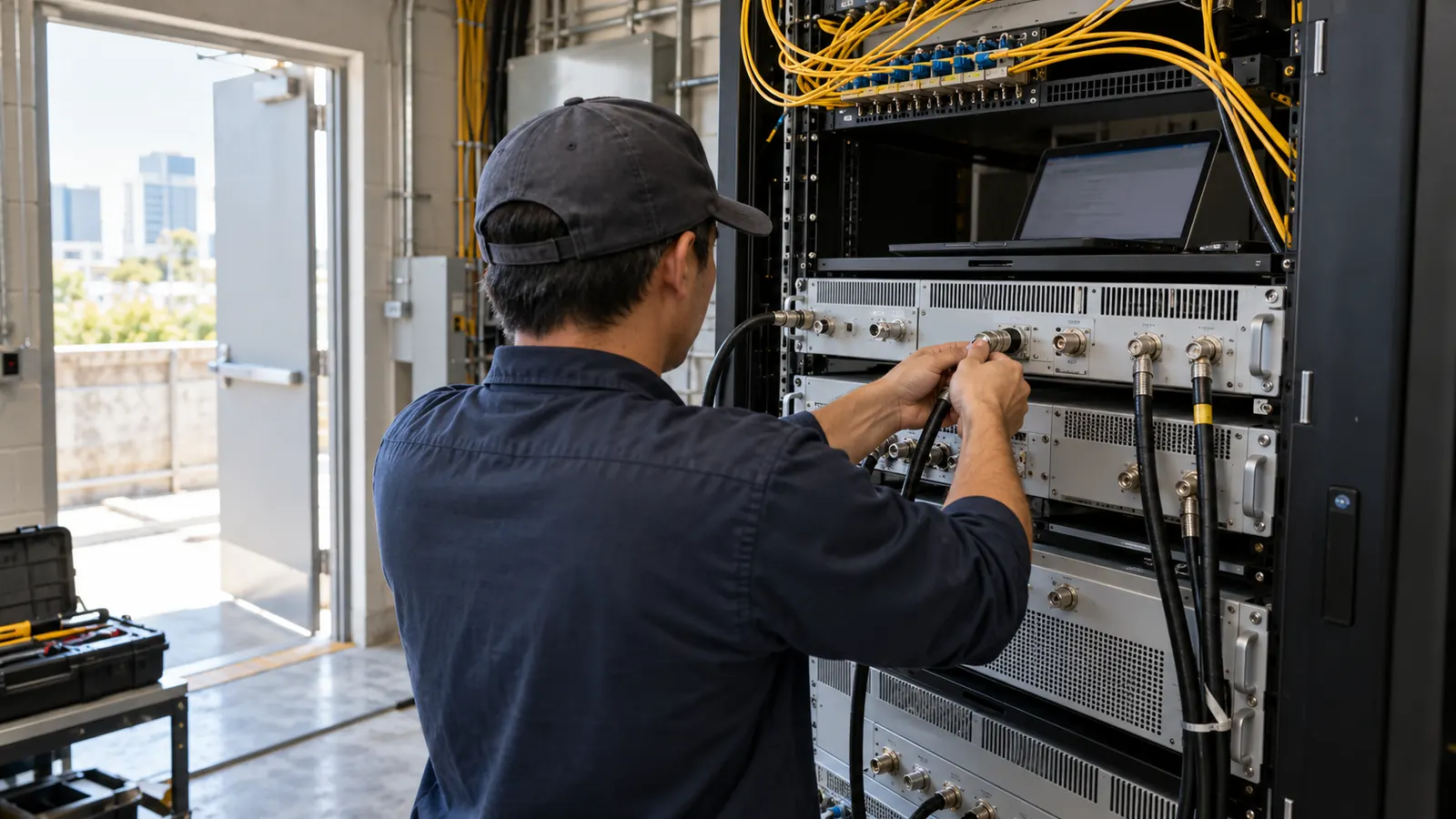

What is a cellular DAS?
A cellular das is a distributed antenna system that carries a mobile network's radio signals to antennas positioned throughout a building or venue. Its 2 directions are downlink, from network to phone, and uplink, from phone to network. The design must support both paths and the expected traffic.
A phone that works beside a window can lose service deeper inside the same floor. Building materials change the radio path, and an antenna outside the building may have little useful reach into a basement. We start by separating a coverage problem from a capacity problem so the survey collects the evidence needed to address the right one.
Coverage describes where service works. Capacity describes how much traffic the serving radio network can handle. Adding indoor antennas can improve access to an existing cell, but it does not automatically give that cell more radio resources when the building fills with people. We ask owners about busy conditions before deciding how to distribute signal.
The source and the distribution system do different jobs
The signal source connects the DAS to a carrier's network. Distribution moves that signal through the property. An off-air donor antenna receives an existing outdoor cell, while a carrier base station can feed radio signals directly into the system through an approved interface. Both approaches need a return path for phones transmitting toward the network.
We treat these as separate design decisions because the words active and passive describe distribution, not a promise about where capacity comes from. A passive antenna network can have powered equipment at its input. An active distribution network can still depend on an outdoor donor, which is why we need carrier participation and performance requirements documented separately from the architecture label.
Set the service boundary before counting antennas
Our starting document identifies the spaces that need cellular service and the carriers the owner wants supported. A lobby and a secured equipment room may have different access conditions, even where they share a floor. We also identify transitions where a phone moves between indoor coverage and the outdoor network, because the boundaries between those serving areas need to be included in testing.
A shared system needs an operating agreement as much as a floor plan. Someone must own the infrastructure and respond when service degrades; carrier participation must be confirmed separately for each network. Our neutral-host DAS overview explains that ownership model in detail. Here, the engineering question is how the agreed service reaches each occupied space.
Choose the signal source before the equipment layout
Off-air donor systems receive a carrier's existing signal at an approved donor location and redistribute it through the building. We evaluate signal quality at that location, including whether another cell interferes with the intended serving cell. To distinguish the intended serving cell from interference, we need the survey to identify what the receiver is hearing alongside its power reading.
The donor also sends uplink traffic back toward the outdoor network. Indoor and donor antennas need enough isolation for the selected equipment to operate without feedback, and the uplink configuration must avoid raising unwanted noise at the carrier receiver. Because more gain can make interference worse, we check the complete path before treating a rooftop location as usable.
Carrier base stations and approved radio sources
A carrier-fed DAS connects approved radio equipment to the distribution network. The carrier determines the supported service and the source configuration, including how traffic is divided among sectors. We reserve equipment space only after understanding the proposed interface and confirming backhaul availability, because radio equipment still needs its connection into the carrier network before it can carry traffic.
Dedicated sources can support a capacity plan that an off-air repeater cannot provide by itself. That does not make every carrier-fed proposal equivalent. A single sector spread over many antennas still shares that sector's resources, and adding another carrier requires its own technical and commercial coordination. Our review therefore needs the sector plan alongside the antenna count to show how the proposed sources will serve that traffic.
Our preferred sequence has a limitation: confirming source participation before final equipment selection can leave parts of the design unresolved while carriers review the proposal. We accept that uncertainty rather than issue drawings that quietly assume an unavailable source. In the decision log, we identify the unresolved interface so the owner can see which part of the design still depends on carrier review.
Keep the survey traceable. Record the carrier and band beside each measurement location so a strong result from one network cannot be mistaken for evidence that every requested carrier will work.
Compare cellular DAS distribution architectures
We compare distribution choices against the actual cable routes, not just floor area. The table separates the architecture from the signal source so an owner can read a proposal without confusing powered remote equipment with a dedicated carrier connection. Its final row applies to every architecture and should remain visible through design review.
| Design choice | Signal path | What we verify |
|---|---|---|
| Passive distribution | Coaxial cable and passive branches feed antennas | Loss and balance on every supported band |
| Active distribution | Powered transport equipment feeds remote units | Optical paths, power and remote monitoring |
| Hybrid distribution | Active transport feeds local passive antenna branches | Remote output and downstream branch losses |
| Source interface | Off-air donor or approved carrier radio source | Carrier authorization and available capacity |
Passive: calculate the longest and shortest branches
A passive distribution network carries RF through coaxial cable to ceiling or wall antennas. Splitters and directional couplers divide the available power among branches. Cable loss changes with frequency and length, so equal antenna spacing on a drawing does not establish equal signal at each antenna. Our calculations follow the path to every outlet, accounting for the cable and passive components between the source and that antenna.
Short routes favor passive distribution when the link budget and coverage prediction support it. Long runs consume more of the available RF budget and can make the far end difficult to serve without overpowering closer areas. For a contained coverage area with accessible pathways, we would consider passive distribution after checking those losses; the building's size gives us only part of the information needed to choose.
Active: bring powered equipment closer to coverage zones
An active DAS uses powered transport equipment, commonly with fiber between central equipment and remote units. This changes where RF is generated or amplified within the distribution path, reducing reliance on a long coaxial feeder. Our construction drawings must also account for power and maintenance access at each remote location, where technicians will need to reach the powered equipment.
The benefit is reach across a distributed property, but loss of power or a damaged transport fiber can affect all the antennas served by a remote unit. Alongside confirming fiber availability, we ask how that fault will be detected and who can reach the affected equipment to restore service.
Hybrid: design each local branch after the remote
A hybrid arrangement uses active transport to reach a floor or wing, then passive coaxial branches to serve nearby antennas. Because the terminology overlaps with some active DAS descriptions, we require a block diagram showing where active transport ends and the passive branches begin. That physical boundary lets us evaluate the proposed arrangement even when vendors use different labels for it.
We apply the passive loss calculation downstream of every remote and check the remote's output conditions against the intended carrier configuration. A future band can change the branch budget even if the antenna stays in place. For projects with remote locations and difficult pathways, our wireless engineering scope connects RF decisions to the supporting infrastructure design.
The source interface remains an approval boundary
Every architecture still needs an authorized source. The FCC rule 47 CFR 20.21, Signal boosters, distinguishes consumer and industrial signal boosters; industrial operation requires an FCC license or express consent from the licensee whose signal is retransmitted. Since building ownership does not confer spectrum rights, we identify the equipment classification and the applicable authorization process before proceeding with the source design.
For carrier-fed equipment, we document the agreed interface and activation responsibility with the participating carrier. The carrier's technical acceptance and the owner's approval of the room layout remain separate records, each identifying the configuration being accepted. This keeps approval of an architectural location from being treated as authorization for the RF configuration.
Separate cellular service from public-safety coverage
Commercial cellular service supports subscribers on participating mobile networks. Public-safety radio coverage supports the responder communications system used by the jurisdiction. They can involve similar-looking antennas and cables while having different operating frequencies and acceptance requirements. We scope them separately at the outset because a successful phone call establishes that phone's connection without demonstrating coverage on the jurisdiction's responder radio system.
NFPA, IFC and the approving authority
The 2024 International Fire Code (IFC), Section 510, addresses emergency responder communications coverage. NFPA 1225, Standard for Emergency Services Communications, 2022 edition, covers in-building enhancement systems within its broader communications scope. The adopted editions and local amendments determine which requirements govern a particular building. Before fixing the acceptance criteria, we confirm the adopted requirements with the authority having jurisdiction and the public-safety radio license holder so the design starts from an agreed basis.
That review establishes the applicable test method and the treatment of critical areas. It also determines requirements for supporting features such as standby power and supervision. We do not apply a single coverage percentage or battery duration to every property. The approved criteria must travel with the drawings so installation and testing follow the same requirement.
A bidirectional amplifier, or BDA, amplifies signals traveling in both directions. That term describes equipment function, while DAS describes the distributed antenna arrangement. Neither term alone establishes public-safety suitability. We keep equipment selection tied to the authorized radio system and its approved design, including interference controls at the donor interface.
Keep acceptance records separate. File commercial cellular results separately from the public-safety acceptance package, even when the same owner coordinates both projects. Each reviewer needs evidence for the system within that reviewer's authority.
Take the system from field survey to commissioning
Our design process begins with existing conditions. We compare the owner's floor plans with accessible pathways and locate candidate equipment rooms, then use the RF survey to establish which areas already work and where the design must improve service. Along with photos supporting the route record, we document measurement locations clearly enough for another technician to return to the same place during verification.
Make the model buildable
We develop coverage predictions using the proposed antenna locations and the building's material assumptions. Because partition changes can alter the predicted result, we treat the model as a basis for design and verify its performance in the field after installation. Our in-building DAS design scope connects that RF work to the construction package and approval handoffs.
The package should show cable routes and the information needed to identify each termination. Equipment locations must account for service clearance, not merely fit inside a drawn rectangle. We coordinate penetrations with the building team and carry the applicable firestopping details into the installation requirements, including the treatment of openings through rated walls and floors. Where existing services block a proposed route, we resolve the conflict in the design before work proceeds through that area.
Band-specific calculations connect the schematic to the coverage model. We check distribution loss against equipment input and output limits, and preserve the assumptions used to predict antenna performance. Where the design supports multiple radio paths, we keep those paths identifiable through installation and record substitutions for review, since equipment with matching connectors can still change the RF behavior.
Match the approval package to the reviewer
The building owner reviews space allocation and access conditions. The carrier reviews its RF interface and operating configuration, while permitting authorities review the work within their jurisdiction. We keep an approval register showing which drawing revision each decision covers, because approval of an earlier layout cannot silently authorize a later equipment change that affects the accepted configuration.
Venue loading deserves its own capacity work. A quiet-building survey cannot establish performance during an event when many subscribers compete for service; our stadium and venue DAS design guide addresses that operating condition. For a multi-building property, campus outdoor DAS engineering covers the outdoor transitions and distribution routes that extend beyond this indoor overview.
Test the installation and then test service
Installation QA/QC comes before service acceptance. Cable and fiber checks establish whether the installed paths meet their specified requirements. We require results that identify the tested path and reference the corresponding drawing. Where the acceptance plan calls for passive intermodulation testing, we record the test configuration and resolve failed component checks before tuning could mask their symptoms.
Commissioning then verifies the configured system against the agreed service criteria. The test plan should identify the carriers and bands under test, with measurement locations that expose weak areas instead of sampling only convenient corridors. Results should pair signal quality with signal strength, while functional call or data tests follow the method agreed with the accepting party.
We also verify the uplink and the transitions between coverage zones. A phone can hear an indoor antenna while its return transmission remains inadequate, and a walk test can reveal a handover problem that a stationary reading misses. Our closeout identifies exceptions by space or service so the owner can see exactly what remains outside acceptance after those tests.
The operational handoff includes the installed configuration and the records needed to recover it after a failure. We ask the owner to assign alarm response before turnover and move access credentials through the owner's secure process, while the as-built package gives the maintenance team the equipment and cable-path information needed to trace a fault without exposing secrets.
Choose a scope the owner can accept and operate
Building owners: commission a coverage assessment and confirm carrier requirements before selecting a distribution architecture. Ask for an explicit description of excluded spaces. If service is already adequate outside and demand is modest, use the assessment to evaluate whether an authorized off-air solution can meet the building's needs under those conditions.
Venue owners and campus operators: require a capacity and sector plan before approving a large antenna layout. Establish who owns the source interfaces and who responds to outages across the property. Our recommendation is to reserve expansion pathways where the operating plan supports growth, while making future carrier participation an explicit dependency rather than a promised feature.
Carriers and neutral hosts: agree on interface limits and the acceptance evidence before releasing installation packages. Assign responsibility for configuration changes after turnover. We recommend retaining a controlled baseline of the operating system in the as-built record so a future remote replacement can be checked against the approved configuration, with the installed settings documented alongside the equipment purchased.
