A redline can be the best evidence in a closeout package and still be the wrong file to issue to operations. It records what someone observed or directed. It has not necessarily been reconciled against every approved change or converted into the owner's final data structure.
An as-built can fail for the opposite reason. The sheet looks controlled, but its clean geometry may conceal assumptions that never returned to the field. This comparison separates the roles. It also shows the exact gate between useful markup and a defensible final record.
Contract language controls terminology. Some owners use record drawing where others say as-built. We define both terms for this workflow, then require the project documents to settle any different usage before release.
Redline vs As-Built Drawing Comparison: The Direct Answer

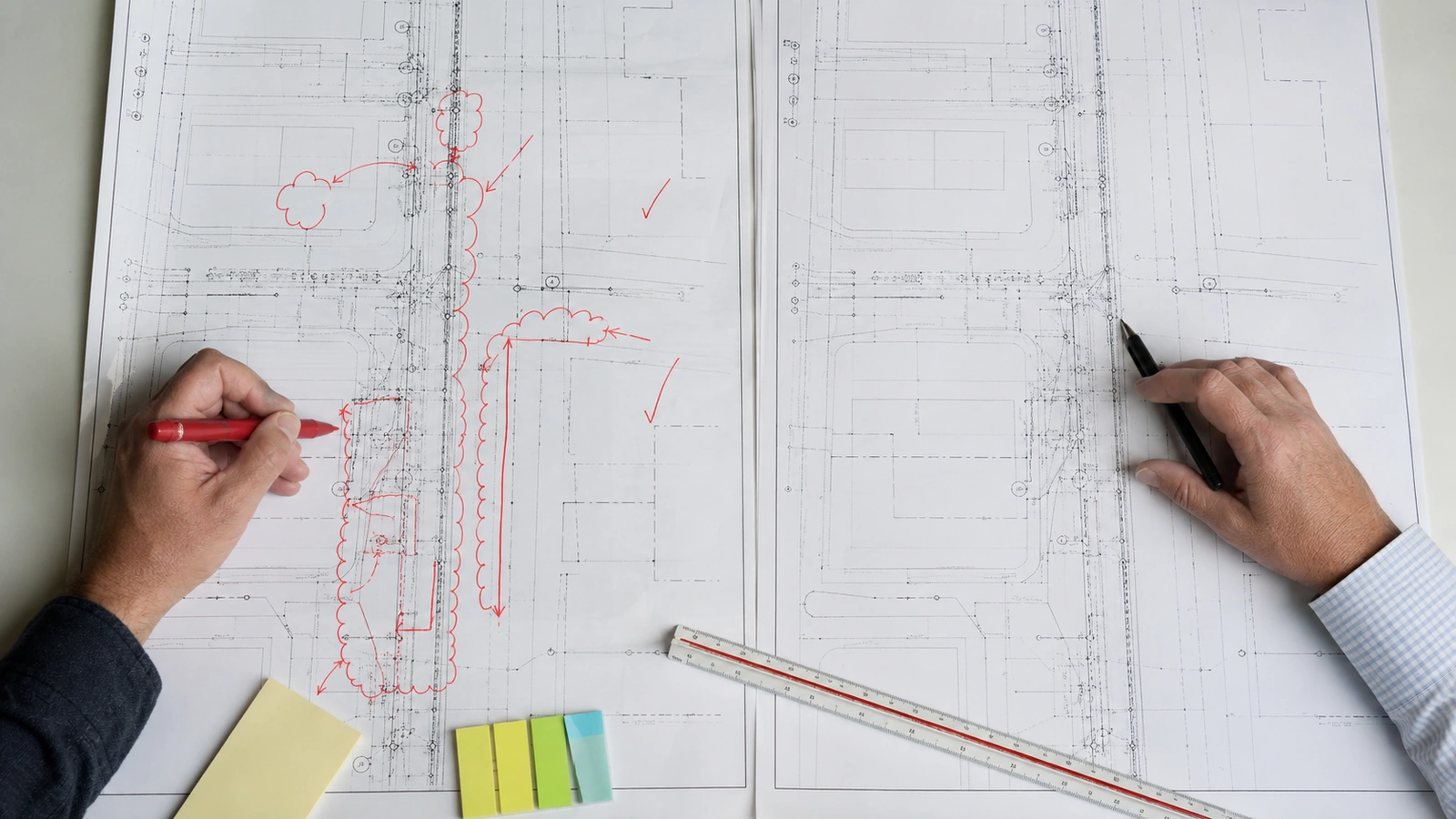

A redline vs as-built drawing comparison separates source evidence from the accepted final record. Redlines capture observed or directed changes on an issued base; as-builts reconcile those changes into a controlled deliverable. Use at least 2 gates, evidence validation and final-record approval, before operations treats the drawing as authoritative.
A redline answers a narrow question: what changed from the reference available to the recorder? It can be handwritten or digital. It may identify an installed offset, deleted structure or revised splice assignment. Its authority depends on who created it and what the project procedure allows that person to record; the markup itself does not settle whether the change was approved.
An as-built answers a broader question: what final condition has been accepted into the project's record set? It should incorporate supported deviations and preserve unresolved items as exceptions. It follows the receiving owner's symbols and file rules. A final title block is not enough. The content needs a traceable relationship to field evidence and change authority.
The two documents belong in one lineage. We begin with an issued design revision. Redlines attach observations or directives to that base. Review resolves conflicts plus approval status. Drafting then produces a proposed as-built revision. QA traces material changes back to evidence, and the named owner accepts the final record. Skip any step and uncertainty moves downstream.
Terminology is not perfectly uniform. The UFGS 01 78 00 closeout specification explicitly defines as-built drawings and record drawings within a tailored federal construction framework; it also addresses redlines or markups as separate closeout material. That public example supports the distinction, but it does not override a private owner's contract definitions.
Our preferred method preserves every accepted redline reference in a change register. Here is the self-critical note: a limitation of that method is administrative weight on small jobs. We still recommend it, but scale the fields to consequence. For a short segment, source sheet and asset ID may be enough. Empty bureaucracy does not improve traceability.
The register should record enough context for a different reviewer to reproduce the decision without turning every small annotation into a separate administrative project; we require the source base and affected asset for every material mark, then add approval evidence only when the change crosses the authority threshold defined by the contract. That scaled approach keeps traceability strong while avoiding fields whose only outcome is repetitive placeholder text.
Decision test: If a reviewer cannot trace a final change to evidence and authority, it is not ready for the accepted as-built.
Redline and As-Built Differences That Affect Acceptance
The comparison table is a decision map. It does not imply that every owner uses one document name. Read each row against the project specification; the critical distinction is functional: redlines are controlled inputs to reconciliation, while the accepted as-built is an output released to a defined system of record.
| Decision factor | Redline | As-built | Release implication |
|---|---|---|---|
| Primary purpose | Capture a change or observation | State the accepted final condition | Do not issue markup as the final record by default |
| Typical author | Authorized field or construction role | Drafting team under record control | Verify both identity and authority |
| Base revision | Issued sheet or stable asset view | Reconciled final revision | Crosswalk every source base |
| Uncertainty | May contain unresolved notes | Shows accepted state plus explicit exceptions | Do not silently resolve ambiguity |
| Data structure | Markup on a reference | Owner CAD or GIS deliverable | Validate attributes and connectivity |
| Approval state | Evidence received | Final record accepted | Record the decision owner and date |
Authorship and Change Authority
Redline authorship should be visible. A foreperson may be authorized to record an installed bend. That role may not approve a route deviation outside permitted work limits. The register separates observation from direction and approval. We ask who saw the condition, who authorized the change and which document contains that authorization. Those answers can come from different people.
As-built authorship centers on controlled transformation. A drafter interprets accepted source evidence and applies the owner's standard. An engineer reviews changes that the project assigns to engineering authority. The owner accepts the record. Combining those signatures into one generic checked box loses accountability. We keep the role attached to the actual decision.
Revision and Data Structure
A redline must identify its base revision. Markup against an obsolete design can still contain useful evidence, but every unchanged feature cannot be assumed current. We reconcile the source with intervening revisions before conversion. The process may produce a conflict where one markup says installed and a later approved instruction says relocated. That conflict needs authority, not prettier linework.
An as-built enters the owner's delivery structure. In CAD, that can mean required layers and references. In GIS, it can include domains or connectivity. The fiber network as-built GIS documentation guide explains why topology needs its own validation. A map can look continuous while the underlying cable object ends at the wrong structure.
Evidence quality differs by change. A measurement tied to a known structure can support an offset. A photograph with no orientation may show equipment but fail to locate it. A test file can support fiber performance while saying nothing about conduit depth. We match evidence to the claim. No single artifact proves every attribute of the installed asset.
Digital markup improves legibility only when the workflow preserves author identity and source revision, because clean vector arrows can still point to an obsolete design; we lock the reference version and retain the annotation history, then export a review copy whose marks remain readable without proprietary software. The tool is secondary to the evidence chain, and switching platforms does not excuse a missing authority record.
Redline Review and As-Built Conversion Workflow
Collection starts with a controlled base. The field team receives the issued revision and stable identifiers. Its procedure defines acceptable marks and required metadata. We prefer one change per clear annotation when practical. Crowded markup should use keyed notes rather than arrows crossing half a sheet. Legibility is not aesthetic. It determines whether the next reviewer can attribute the change correctly.
Triage follows receipt. We classify each mark as installed observation, approved instruction or unresolved discrepancy. Missing location references return immediately. Material route or equipment changes move to the authority named in the project matrix. Minor drafting corrections follow their own path. The classification should never imply approval merely because the markup arrived from the field.
Conversion begins only with accepted evidence or an explicit approved assumption. We update geometry and attributes under one revision. Deleted or abandoned facilities receive the status required by the owner. We do not erase their prior existence when retention rules require history. A proposed final sheet then receives automated checks and targeted human tracing.
Targeted tracing focuses on consequential changes. Route deviations and network tie points deserve attention. So do permit-sensitive crossings or changes between contractors. The reviewer selects each final object and follows it back to the redline plus authority record. This is stronger than comparing two PDFs visually, because it tests why the change exists.
The OTDR testing acceptance criteria guide illustrates an important boundary. A trace can support optical acceptance for a defined fiber path. It does not by itself verify route geometry. During conversion, we link the test to the as-built cable identity while keeping spatial evidence separate. Correct relationships beat oversized folders.
Conversion checkpoint: Keep unresolved marks in an exception register. Never let drafting resolve a field conflict by choosing the cleaner line.
Approval closes the transformation. The receiving reviewer sees the proposed final revision and exception status. Accepted outputs enter the designated repository. Superseded drafts remain controlled but are not left beside the final file with ambiguous names. We preserve the accepted source lineage so a future correction can explain what changed without reconstructing the entire project.
A conversion batch should remain small enough for reviewers to associate comments with stable assets, especially where one ambiguous mark can affect several connected sheets; we freeze unaffected records after acceptance and reopen only the population touched by a corrected source, preserving prior decisions rather than issuing the entire route again. This limits revision churn while keeping the corrected final set internally coherent across match lines and data exports.
Markup conflicts should be resolved against authority and evidence rather than by voting among files, because several repeated notes can all originate from one obsolete instruction. We group conflicting marks by affected asset and show each source revision, then ask the designated reviewer for one disposition that the conversion team can apply consistently. The resulting decision remains attached to every affected final object so later reviewers understand why one field note controlled. Unrelated accepted objects stay frozen and do not absorb a new revision date merely because the conflict shared a sheet with other changed assets.
Failure Modes and Candid Limitations
The most common failure is an untraceable clean drawing; the final sheet includes a shifted asset, but no source identifies who observed it or why the change was accepted. The opposite failure is a dense redline package sent directly to operations. Every note may be genuine, yet no one has resolved contradictions or entered the owner's data structure. Both packages transfer risk.
Another failure is revision drift. One crew marks revision 4 while another works from revision 5. The resulting redlines cannot be overlaid as if they share a base. We retain each source revision and reconcile only material differences. File modification time is not a reliable authority signal. Use the issued revision plus transmittal record.
Another failure occurs when reviewers treat every handwritten note as installed fact, even though some marks document proposals or instructions that the crew never executed; we require the recorder's status and observation date, then compare consequential marks with available inspection or acceptance evidence before conversion. If the installation state remains uncertain, the final record carries an exception and a defined verification owner instead of a guessed line.
Grant work adds a documentation purpose but does not collapse the distinction. Under 2 CFR 200.334, covered federal award records generally carry a 3-year retention period from final financial report submission, subject to exceptions; that requirement does not make every redline an accepted as-built. Our fiber as-built services for grant compliance guide explains the technical evidence layer. The recipient must retain support while also meeting its acceptance procedure.
Teams working on covered broadband awards can consult the BEAD engineering checklist, then map each item to the actual award and state process; the checklist does not approve a drawing. It helps distinguish grant evidence from the owner asset record before a late reporting request forces staff to reconstruct source relationships.
No redline or as-built can prove a concealed condition that nobody measured. Neither file can establish approval for a change that bypassed the authority path. Our process makes those limitations explicit through exceptions and source status. It cannot replace field verification or the receiving owner's decision. That candor protects the record from false confidence.
Repository confusion can undo an otherwise sound conversion when a superseded draft remains easier to find than the accepted final package in the normal owner search path. We test the owner's retrieval path with routine user permissions and confirm that historical redlines remain available without presenting themselves as current construction instruction; the acceptance record then names the controlling location plus revision, giving future staff a durable reference after temporary project workspaces are retired.
File format limitations should be declared before conversion begins, because a PDF markup can preserve appearance while losing the object identity needed for a reliable GIS update. We identify which source attributes can survive automation and which require manual review, then budget reviewer attention around consequence rather than the total file count received. Native output receives a separate integrity check against the fixed review copy so neither format silently drops accepted notes. Any unavoidable loss is documented as an exception that the receiving owner can evaluate before release.
Draftech's in-house redline reconciliation and as-built documentation service converts accepted field evidence into controlled CAD or GIS deliverables. Construction, when included, is delivered full turnkey through managed subcontract crews under Draftech QA/QC and safety oversight. We do not invent missing field conditions or grant acceptance on the owner's behalf.
Redline vs As-Built Decision Recommendation by Reader
The decision is direct. Use redlines to preserve source evidence and unresolved field truth. Use an accepted as-built to control the operational handoff. Do not force one artifact to perform both roles; the handoff is ready only when material final changes trace backward and the owner has accepted the destination format.
For a construction manager: choose redlines during active work and enforce a stable base revision. Submit them early enough for questions to return while the field team is available. Do not relabel the marked set final as-built merely to satisfy a folder deadline.
For an owner record manager: release the as-built only after evidence review and system validation. Require explicit exceptions plus a named system of record. Preserve accepted redlines as lineage, but keep them out of the final operating folder when their status can be mistaken for current instruction by downstream operations staff.
For a grant compliance lead: retain both source support and the accepted final deliverable according to the applicable award. Separate payment evidence from technical acceptance. Confirm service-area coordination before assigning a multi-state conversion standard that conflicts with local recipient procedures.
For a drafting or GIS lead: choose a conversion batch that reviewers can trace and freeze accepted records outside the affected change population during each controlled review cycle. Return unclear source marks with stable identifiers and consequence stated, rather than resolving them through geometry that merely looks plausible to a later reviewer. Release native data plus a fixed review artifact only after both forms describe the same accepted revision.
