Canal Encroachment Permit Fiber Optic: District Occupancy and Irrigation Canal Crossings

A canal on the alignment is not a county road and it is not a state highway. Project managers still drop it into the DOT stack because the water reads as a drainage ditch on the aerial. The reviewer who owns the prism is the irrigation district, or the Bureau of Reclamation when the canal sits on Reclamation land. Filing the wrong agency burns the first cycle.

This guide covers a prism crossing and longitudinal occupancy of the bank or maintenance road. We walk 43 CFR Part 429 as displayed on eCFR as of September 10, 2026, plus the district's own current application form for the canal under review. Invert cover and aerial clearance come next. Road access sits with indemnity. Insurance is in the same section. Engineering stays in-house. Construction, when in scope, is full turnkey work by Draftech-managed crews.

What a Canal Encroachment Permit Fiber Optic Actually Authorizes

A canal encroachment permit fiber optic is written occupancy from the irrigation district or a Reclamation use authorization under 43 CFR Part 429. It covers a prism crossing and bank occupancy. Fiber on Reclamation land files SF 299 with the $100 fee in 429.16.

Start with title, because the water does not tell you who can say yes. A district-owned canal is a district decision. A Reclamation canal is a federal use authorization even when a water user organization operates it under contract. Mixing those two into one county form is how a complete drawing set still comes back unreviewed.

43 CFR Part 429, source 73 FR 74335, December 5, 2008, is the rule in force on the eCFR display dated September 10, 2026. Title 43 was last amended August 12, 2026; Part 429 still carries that 2008 source note.

The paper is occupancy, not an assignable easement. 429.15 says Reclamation is not required to issue, and if it does issue it provides only the least estate needed. 429.30 bars transfer without prior written approval unless the authorization itself allows it. District licenses read the same way: revocable and tied to the accepted drawings.

We treat the canal as a private linear asset, the same class as a railroad corridor, not as a public street. The railroad crossing permit comparison is the sibling process for that class. A canal still has invert cover and prism clearance. It also has a maintenance road the railroad does not. Do not paste a rail casing spec onto a lined canal. A natural gas line on the same route is a third owner: the operator's encroachment agreement, not a district form. That package is in our natural gas pipeline encroachment permit telecom guide.

District Form versus Bureau of Reclamation 43 CFR 429

The form follows the owner. Imperial Irrigation District's Encroachment Permit Application Instructions require a completed application plus a non-refundable $250 fee before the Real Estate Section will consider work in IID right of way. Kern Delta Water District publishes a $500 general encroachment fee due upon acceptance. Pioneer Irrigation District's utility application carries a $500 non-refundable fee per project. Those are district numbers, not Reclamation's $100.

SF 299 versus Form 7-2540

429.10(a) is explicit: use SF 299 for telecommunication systems on Reclamation land. The same form covers facilities and waterbodies. Fiber-optics cable is listed at 429.10(a)(3). Form 7-2540 is the Right-of-Use Application for other uses such as grazing. Events and mineral removal use that form too. OMB control number 1006-0003 covers Form 7-2540; the April 2, 2025 30-day notice at 90 FR 14474 keeps that collection through April 30, 2029. Fiber still files SF 299.

429.9 tells you to contact the local Reclamation office before filing. 429.12 says file the signed form and the $100 nonrefundable fee with the office that has jurisdiction. 429.13 requires written acknowledgment within 30 calendar days and lets Reclamation request legal descriptions and construction specifications. Processing time is not a statutory clock. Missing sheets set it.

The Columbia Cascades Area Office Engineering Guidelines for Crossings page, last updated December 31, 2025, still points applicants to those two forms and to Reclamation Manual LND 08-01. That is a regional pointer, not a substitute for the CFR. We confirm the current form names there, then file with the office that owns the canal.

The limitation we still hit when the ownership search is rushed is treating that district PDF as the whole permit on a district-operated Reclamation canal. A district-operated Reclamation canal can still require SF 299. The $100 fee is the cheap version of that mistake. The expensive version is a closed file after the 90-day administrative-cost window in 429.18.

Water User Organization Concurrence

429.5 lets a water user organization issue only limited use authorizations, and only when its Reclamation contract allows it. Those papers cannot convey a federal real-property interest, cannot run indefinitely, cannot auto-renew, and must be fully revocable at Reclamation's discretion. Anything that looks like a long easement still belongs to Reclamation.

429.6 adds a second signature on easements and rights-of-way longer than 25 years: the water user organization under repayment contract must also approve. 429.6(b) still requires notice to the organization before issuance so operations are not blindsided. We record that notice even when the term is shorter.

429.14 screens compatibility with project purposes and operations. It also screens safety and environmental compliance. The best interests of the United States sit in the same test. 429.15 repeats the discretion point. A complete SF 299 is not an entitlement.

Longitudinal Occupancy versus Irrigation Canal Crossing Permit Telecom

A crossing and a parallel run are different permits even when they sit on one drawing. The crossing asks whether the conduit can pass the water without damaging lining or operations. The parallel run asks whether the district can still drive and rebuild the bank for the life of the plant after the fiber is in the ground. We split them on the exhibit so one typical detail is not asked to cover both.

Irrigation Canal Crossing Permit Telecom

An irrigation canal crossing permit telecom package is a plan and a profile. It also needs a method statement for one prism crossing. The profile has to show the invert or lining and the proposed conduit. Add casing if required. Show pits and the vertical clearance claimed. Horizontal directional drilling is the usual method under a live canal. HDD controls belong in the method statement, not as a substitute for the district's invert cover.

Central Arizona Project Guidelines for Crossings require 10 feet of clearance below the lining for HDD of utilities under 12 inches outside diameter, and the same 10 feet between casing and canal bottom when the canal is watered. Larger diameters are case-by-case. That 10-foot figure is a CAP number, not a national invert rule.

Middle Rio Grande Conservancy District Utility Standard Details, May 2026, start the bore pit at least 10 feet from the toe of slope and require 3 feet of cover below an unlined invert or 2 feet below a reinforced section. Carlsbad Irrigation District's Right of Use Policy wants underground crossings under an existing culvert with 3 feet of clearance, and limits live-flow boring to casings 6 inches or smaller unless lining is added. Open-cut across an operating canal stays off the schedule until the issued permit names a dewatered window.

Longitudinal Occupancy of the Canal ROW

Parallel plant is where most packages fail even when the crossing detail is clean. Carlsbad Irrigation District requires parallel utilities in the outer 5 feet of the right of way and not less than 3 feet below the invert. MRGCD's May 2026 details use the same outer 5 feet so maintenance equipment can pass. IID Water Department project requirements, revised March 15, 2022, will not accept a right-of-way remnant narrower than 40 feet when a facility modification is on the table.

A vault or splice case in the travel path of a district grader is a denial waiting for a site visit once the ditchrider walks the bank. We show the road and the gates on the plan, then we keep appurtenances off that path. If the only remaining alignment sits in the road, we say so in the application instead of hiding it in a typical detail on the last sheet. The county road permit package does not cover this corridor. A county may maintain a road that shares a bank without owning the canal.

Bore Depth, Aerial Clearance, and Maintenance-Road Access

Three field dimensions decide most canal reviews, and none of them is a highway cover table. Invert or lining cover is the crossing question. Prism clearance is the aerial question. Road width is the operations question. Get one wrong and the others will not save the package.

Bore Depth below Invert and Lining

Cover is measured from the feature the district actually protects. On an unlined canal that feature is the invert. On a lined canal it is the bottom of the lining. CAP's 10-foot HDD clearance is measured to the lining. MRGCD's 3-foot and 2-foot figures are measured to the unlined invert or the reinforced section. Caltrans Encroachment Permit Special Provisions for fiber, 2025, give 24 inches under lined channels and 30 inches under unlined ditches, then send the applicant to the channel owner for anything Caltrans does not own. That last sentence is the one that matters here.

We put the controlling surface on the profile with a station and an elevation, then we dimension the top of conduit to that surface. A note that says "minimum 36 inches cover" without naming invert or lining is not a dimension a district engineer can check. Pits stay outside the toe. Drill-fluid response belongs in the method statement because a lined canal does not forgive a blowout into the water.

Aerial Clearance over the Prism

Overhead crossings are still occupancy of the prism. Salt River Project Design Guidelines and Specifications for Bridge Crossings of Salt River Project Canals, March 2019, require 35 feet of clearance for overhead utilities crossing canal right of way and 22 feet for lines parallel to it. MRGCD's May 2026 details require 25 feet between district infrastructure and telecommunication lines. Carlsbad Irrigation District's overhead communications clearance, unless a stricter code applies, is 22 feet from the highest point on the ground.

Poles and guys sit outside the right of way on those same sheets. A pole in the maintenance road is an operations conflict even if the wire clears the water. Aerial geometry still has to satisfy the pole owner's clearance table. The canal owner adds a second clearance to the prism. We show both on the same span sheet.

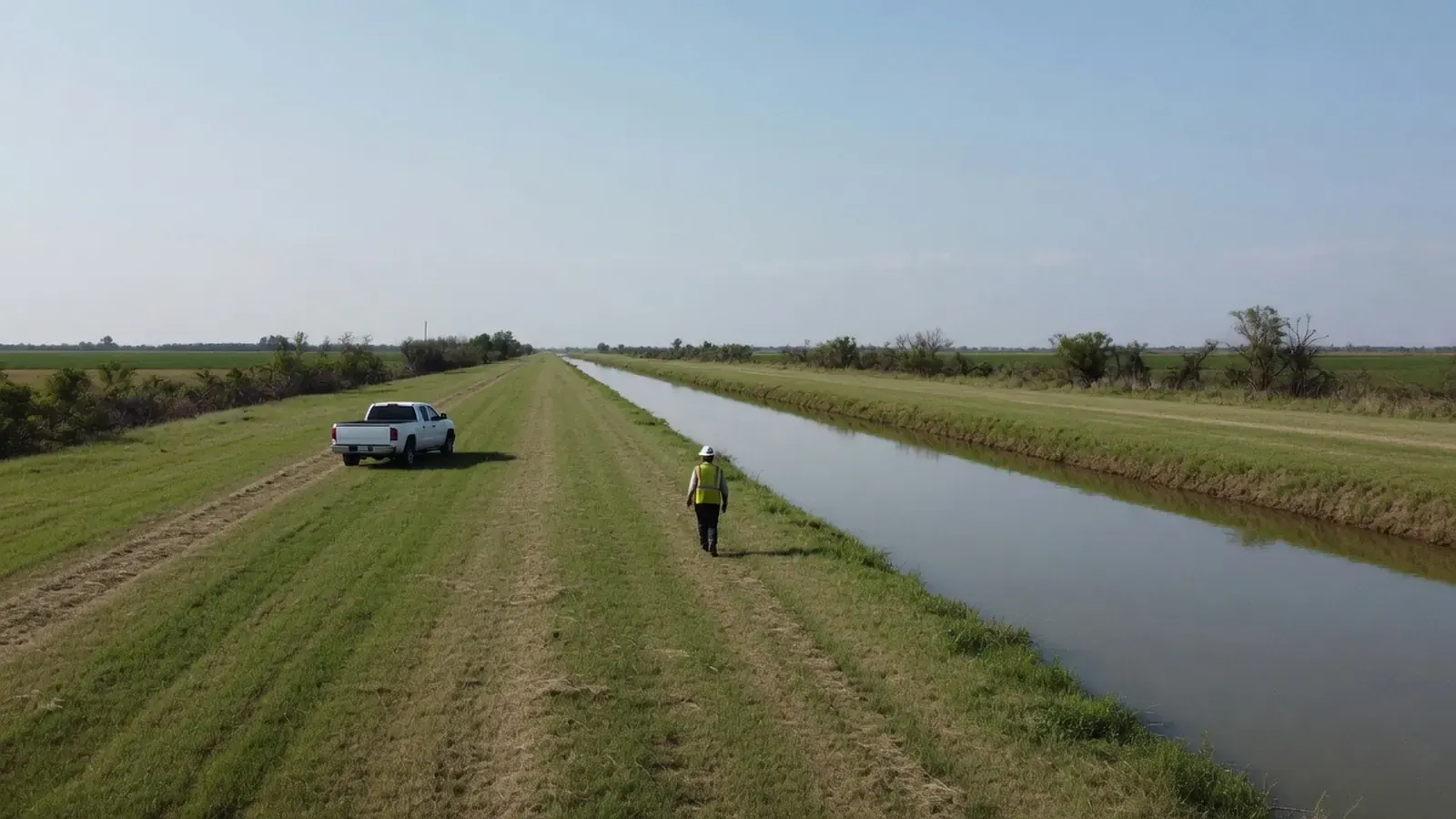

Maintenance-Road Access

Districts live on the bank road. Blocked access is a project-purpose conflict. A bore pit in the travel lane during irrigation season is the field version of a 429.14 denial. We dimension the remaining road width, name the gates that must stay operable, and keep staging off the prism unless the issued permit says otherwise. Work windows follow water operations, not the fiber schedule. We extract those conditions into the field digest before Draftech-managed crews mobilize, and we stop if a pit has to move into the road after the drawings were accepted.

Indemnity, Insurance, and Application Fees

The legal terms are not boilerplate copied from a county highway permit. 43 CFR 429.28(a)(1) requires the grantee to indemnify the United States for injury to person or property arising from the authorized use. 429.28(a)(2) reserves the United States' right to build public works without liability for terminating the use. Later paragraphs in 429.28 let Reclamation terminate for disaster, incompatibility, operational need, or failure to follow the authorization, at no cost to the United States.

District insurance is stated in dollars. IID's encroachment terms allow the District to require commercial general liability up to $1,000,000 per occurrence and $2,000,000 general aggregate, naming the District as additional insured. Failure to obtain that insurance when required is a material breach. California Code of Regulations Title 23, section 610.7, still in the register through Notice Reg. No. 26, June 27, 2025, sets a Department of Water Resources floor of one million dollars per occurrence. We put the named additional insured on the certificate before the district will stamp the plans.

Fees stack. Reclamation's $100 application fee under 429.16 is nonrefundable and separate from administrative costs collected in advance under 429.17 and 429.18. Use fees under 429.23 are a valuation or a bid, paid in advance. 429.25 gives 90 days to accept the offered authorization; miss it and the file may close. IID's $250 and Kern Delta's $500 sit on the district side of the same job. They are intake costs, not construction costs. 429.33 treats unauthorized use as trespass under 43 CFR Part 423. Reclamation can collect removal costs and the missed use fee. Interest can accrue on top. We do not occupy a bank on a verbal go-ahead from a ditchrider.

Portfolio delay is a different problem from a single canal package. The ROW permitting delay guide covers the stacked clocks across counties and DOT. Rail is a third clock. This article stays on the canal owner. Our fiber permitting and ROW services keep those tracks on one register so a canal hold is not reported as a county hold.

Canal Permit Recommendation by Role

Release the canal package when owner, form, invert cover, prism clearance, and road access agree with the current district sheet or 43 CFR Part 429. Do not measure readiness by sheet count. If the owner of record is still a title question, hold that reach.

ISP program manager: fund the ownership search before design production expands along the bank. Keep the canal track separate from the county clock and from the railroad license. Do not announce a construction-ready segment while SF 299 administrative costs or a district license remain open. Active in 24 states. Available across all 50 U.S. states.

OSP design lead: put invert cover and the maintenance road on the same profile. Dimension cover to the surface the owner protects. Keep pits and vaults off the travel path. Reject a typical that was drawn for a county ditch.

Permit coordinator: file the owner's current form, not last year's PDF from a different district. On Reclamation land that form is SF 299 plus the $100 fee. Diary the 30-day acknowledgment and the 90-day administrative-cost and acceptance windows. Record verbal ditchrider guidance as pending until the issued paper says it.

Construction manager: release Draftech-managed crews only against the issued authorization and the accepted revision. Brief the work window against water operations. Stop if a pit, pole, or stockpile moves into the road or onto the lining. Capture as-built cover to the same surface the profile used.
